Solar Pumps
Solar Open Well Submersible Pumps

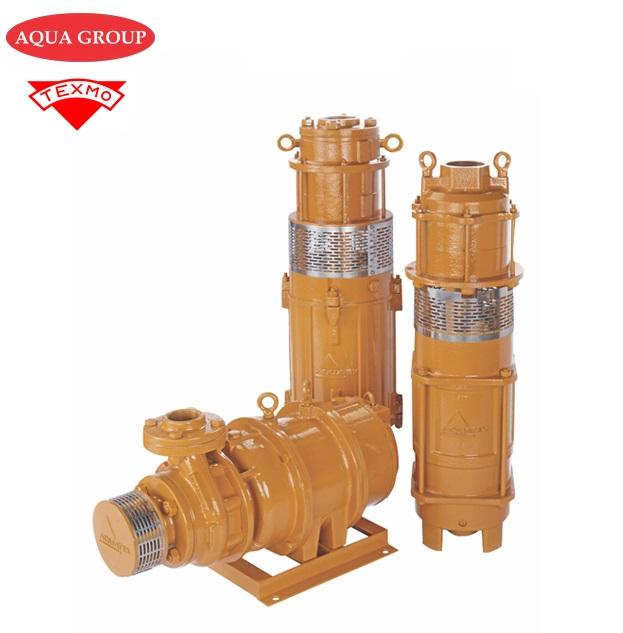

AQUAGROUP’S “AQUATEX” SOLAR POWER OPERATED OPENWELL SUBMERSIBLE PUMPSETS offer the convenience of not having to change the position of the pump with changing water levels in the well. They are rugged and efficient. They are reliable and are built to withstand tough operating conditions.
| PARTICULARS | DETAILS |
|---|---|
| Power Range | 3.0 to 30.0 HP |
| Voltage Range | 340V- 440V, AC Three phase , 50Hz |
| Speed (rpm) | 2900 |
| Motor Type | Water-filled and water cooled Induction motor |
| Head | Maximum 90 m |
| Discharge | Maximum 2640 lpm |
| Liquid temperature | Maximum 33ºC |
| Operating Pressure | 80 bar |
| Sand content | maximum ,50 PPM |
- Deep or shallow openwell pumping with suction lift
- River and canal lift irrigation pumping
- Pressure boosting applications.
- Public water supply to large residence areas and multi storied apartments
- Water supply to commercial establishments like Hotels, Lodges and Hospitals etc
- Dewatering of mines
- Industrial water supply and transfer
- Fountains
- Energy efficient motor
- Low operating cost
- Rigid cast iron motor frame, impeller and volute casing
- Three phase water-filled submersible induction motor with easily rewindable stator suitable for solar power operation
- All Pumps and Motors are suitably modified to operate with the variable speed drives
- All pumps are designed for higher discharge ouput per day by early starting and Late stop characteristics
| PARTICULARS | DETAILS |
|---|---|
| MOTOR | Water-filled Squirrel cage Induction motor |
| Stator Frame | Cast Iron (FG 200) |
| Thrust Bearing | Carbon with SS Thrust pad |
| Journal Bearings | Phosphor Bronze / Carbon |
| Diaphragm | Nitryle Rubber |
| Shaft | Stainless steel shaft with integral sleeve /Carbon Steel shaft with SS sleeve |
| Strainers | Stainless steel |
| Discharge casing | Cast Iron (FG 200) |
| Suction bracket | Cast Iron (FG 200) |
| Impeller | Cast Iron (FG 200) (Optional – Bronze) |
