Solar Pumps

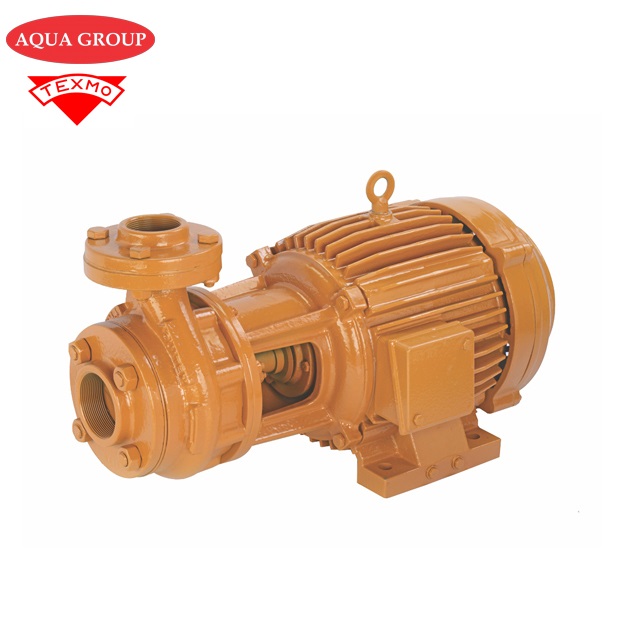

Solar Surface Monoblock Pumps
AQUAGROUP’S “AQUATEX” Solar Power Operated Monoblock pumps are rugged, reliable and are built to withstand tough conditions and high suction lifts. A very wide range of monoblocks to suit a variety of operating points are available.
| PARTICULARS | DETAILS |
|---|---|
| Power Range | 3.0 to 30.0 HP |
| Voltage Range | 340V- 440V, 50Hz, Three phase AC Power supply |
| Class of Insulation | ‘A’ Class – 1.5 HP to 30 HP 'B’ Class – 3 HP to 20 HP |
| Speed (rpm) | 2900 |
| Motor Type | Squirrel Cage Induction motor (TEFC Type) in Rugged Cast iron construction |
| Head | Maximum 95 m |
| Discharge | Maximum 2600 lpm |
| Liquid temperature | Maximum 33ºC |
| Operating Pressure | Maximum 20 bar |
| Optional (Sealing) | Carbon Vs Ceramic Mechanical seal / bronze impeller provided on request |
- Deep or shallow openwell pumping with suction lift
- River and canal lift irrigation pumping
- Sprinkler and drip Irrigation systems
- Filter point pumping
- Industrial water supply and transfer
- Cooling water circulating systems
- Pressure boosting systems
- All Pumps and Motors are suitably modified to operate with the variable speed drives
- All pumps are designed for higher discharge ouput per day by early starting and Late stop characteristics
| PARTICULARS | DETAILS |
|---|---|
| Motor Body | Cast Iron (FG 200) |
| Bearings | Heavy Duty Deep groove ball Bearings |
| Rotor shaft | Carbon steel shaft (Optional – SS) |
| Shaft Sleeve | Stainless Steel (AISI 410) |
| Cooling fan | Aluminum / Cast iron (FG 200) |
| Water cutting ring | Nitrile Rubber |
| Cooling fan cover | Cast Iron (FG 200) |
| Eye bolts | Forged steel |
| Casing | Cast Iron (FG 200) |
| Yoke | Cast Iron (FG 200) |
| Impeller | Cast Iron (FG 200) (Optional – Bronze) |
| Sealing arrangements | Packing rope with Gland Optional : Packing rope with Gland & Double lip seal Optional : Mechanical seal |
